KQ Push-in fittings KQ2VS

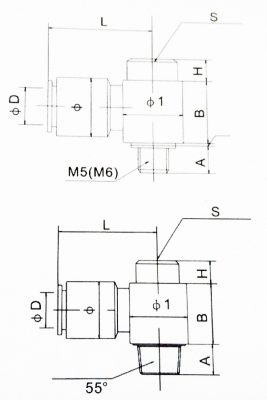

Suitable for tracheal outside diameter ΦD Model Connecting thread Six corners of the joint Joint shape
Specifications A/A1 H S Φ1 Φ L B
Φ4 KQ2VS04-M5  M5x0.8 4 4 6 13.5 11  22 13
KQ2VS04-M6  M6x0.8 4.8 4
KQ2VS04-01S 1/8″ 7.5  4.8
KQ2VS04-02S 1/4″ 10.5  5
Φ6 KQ2VS06-M5 M5x0.8 4 4 13.2 24
KQ2VS06-M6  M6x1.0  4.8  4
KQ2VS06-01S 1/8″ 7.5  4.8
KQ2VS06-02S 1/4″  10.5  5
Φ8 KQ2VS08-01S 1/8″ 7.5  4.8 8 17.6 15.6  28.5  16.2
KQ2VS08-02S 1/4″  10.5  5
KQ2VS08-03S 3/8″  11  6.7
Φ10 KQ2VS10-01S 1/8″  7.5 5.7 20.5 18.8 31  19.2
KQ2VS10-02S 1/4″  10.5
KQ2VS10-03S 3/8″ 11
Φ12 KQ2VS12-02S 1/4″  10.5 5.7 10 24.8 21.3 34 21.6
KQ2VS12-03S 3/8″ 11
KQ2VS12-04S 1/2″ 11
SKU: KQ2VS Category:
